RegEx Guide

1. What is a RegEx?​

A Regular Expression, or RegEx, is a pattern (or filter). It accepts a certain set of characters and rejects the rest.​

• If a barcode does not correspond to the regular expression defined in the scanner acquisition filter, it is not retrieved by the drone​.
• If it corresponds, the drone retrieves the piece of information and flies to the next location.

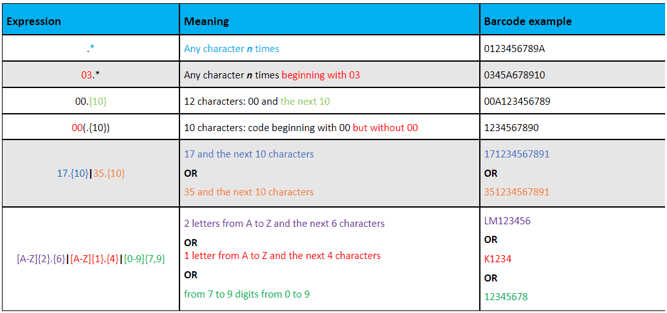

2. The 6 most used RegEx​​

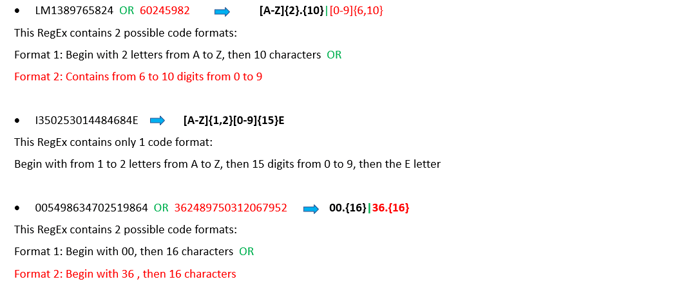

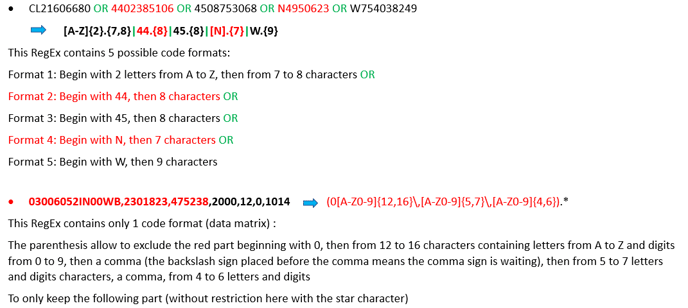

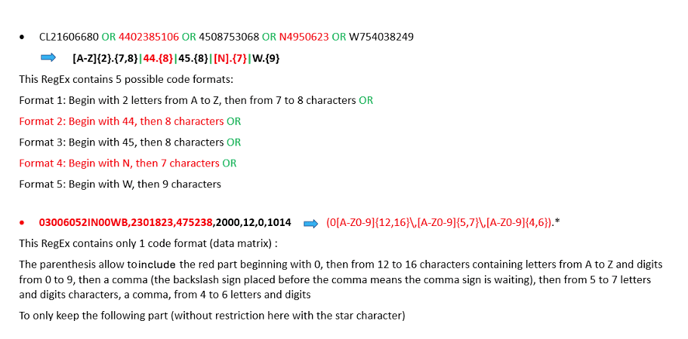

3. RegEx examples​

4. Characters’ description​

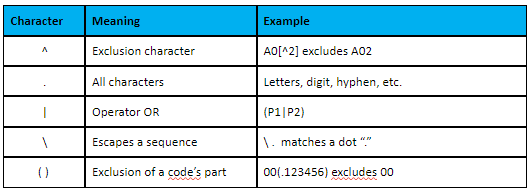

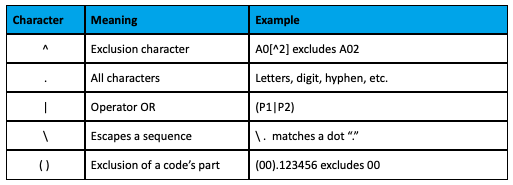

Special characters​

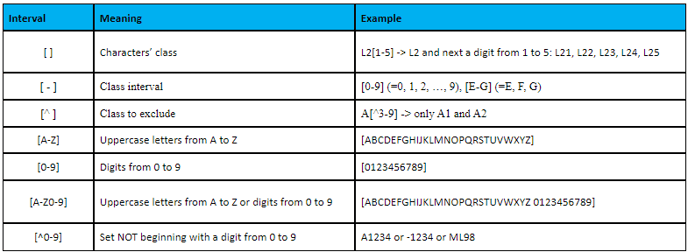

A few examples of character class ​

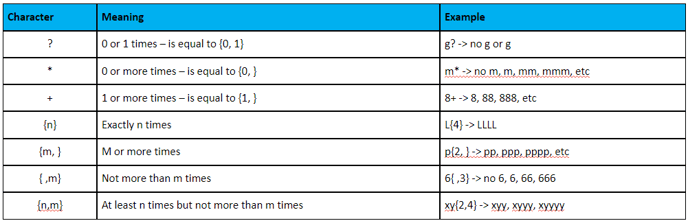

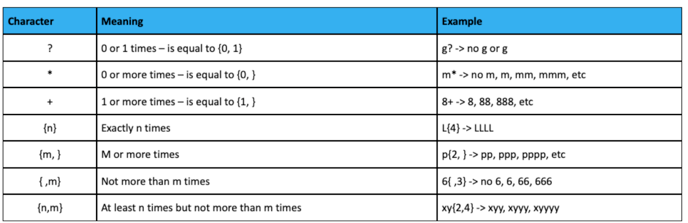

Repetition Operators​

5. Test and check a RegEx​

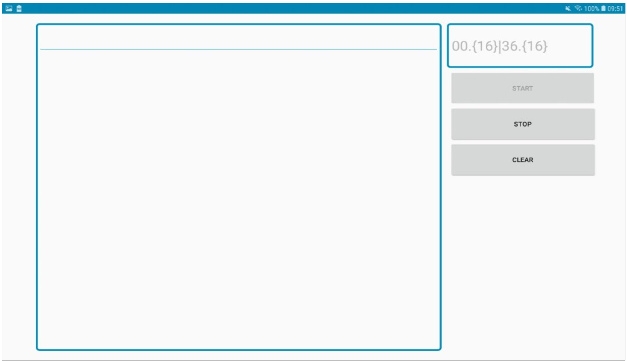

You can test and check a RegEx directly on EYESEE Tablet, in the TOOLS menu:​

Please refer to the EYESEE online documentation for more information​.
