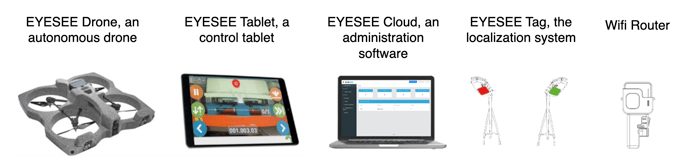

The EYESEE solution is composed of:
- EYESEE Drone: an autonomous drone,
- EYESEE App: a supervision application,
- EYESEE Cloud: administration, management and data export software,
- EYESEE Tag: UWB terminals to geolocate the EYESEE Drone,
-
Wifi router: connects the EYESEE App to the EYESEE Drone
EYESEE Drone
The drone, which weighs less than two kilos, consists of a Polypropylene (PPE) body ideal for industrial environments. It is a four-engine vehicle with a velocity of 30 to 50 cm per second.
The embedded system is equipped with three Zebra barcode readers and one HD camera that provides real-time video feedback to the operator, as well as photos taken at each location visited by the drone.
Different sensors allow the drone to avoid any collision with a fixed or approaching object and to fly autonomously by executing a flight plan.
EYESEE App
The control system is equipped with the Eyesee tablet application which allows (once the mapping has been done) to create and execute the various drone inventory missions. The information is communicated by CSV file (manually or via FTP) to your WMS.
EYESEE Cloud
The EYESEE Cloud administration, management and data export software lets you manage the warehouse to be inventoried and its mapping, configure acquisitions to be retrieved for each location, and track the progress of inventories.
Flight missions can be created using a CSV file extracted from your stock, or without.
EYESEE Cloud also features inventory error management and tracking via a dashboard.
EYESEE Tag
The two EYESEE Tags, green and red, are UWB (Ultra Wide Band) terminals enabling the EYESEE Drone to geolocate itself. Placed in the aisle to be inventoried, they are essential for EYESEE Drone's flight.
Wifi router
The Wifi router connects the EYESEE App to the EYESEE Drone.
