Start a mission in Expert mode (3 steps)





In the mission list, click this button to start the mission:

---



Step 1 / 3:

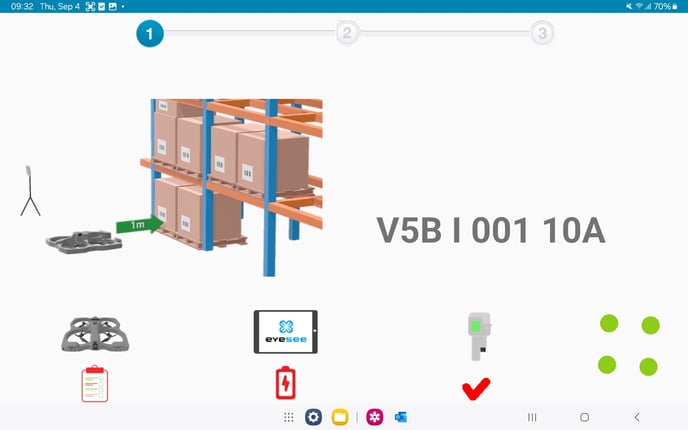

The first step of starting a mission reminds you of the following:

•  the name of the first location of the mission, in front of which the EYESEE Drone must be placed
• the drone must be positioned approximately 1 metre away from the pallets

Insert a battery, then switch the drone on.
The drone will automatically perform the pre-flight checks:



Once the checks are complete and successful, the various icons will appear in green.

If an error occurs, you will only be able to proceed to the next step once the issue has been resolved.

---



Step 2 / 3:

The second step of starting a mission allows you to select the position of the EYESEE Tags based on the position of the colored stickers on the drone.
Select the appropriate option according to the arrangement of your EYESEE Tags and the colored stickers on the drone:

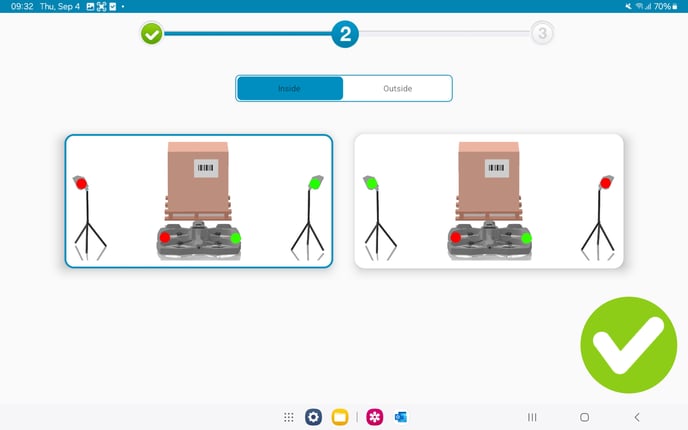

• If the drone is positioned inside the EYESEE Tags, there are two possible options:

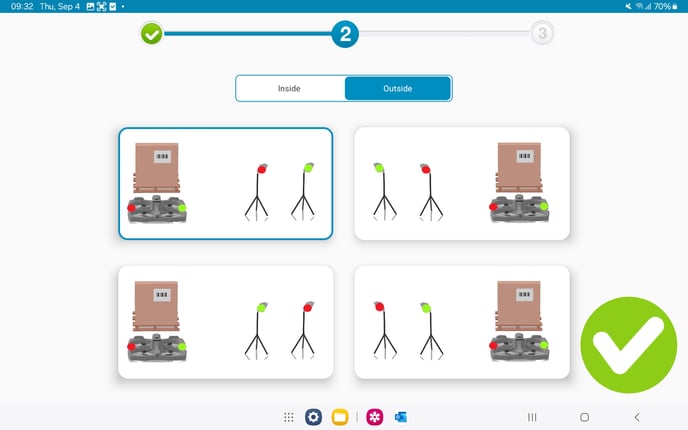

• If the drone is positioned outside the EYESEE Tags, four options are available:

---



Step 3 / 3:

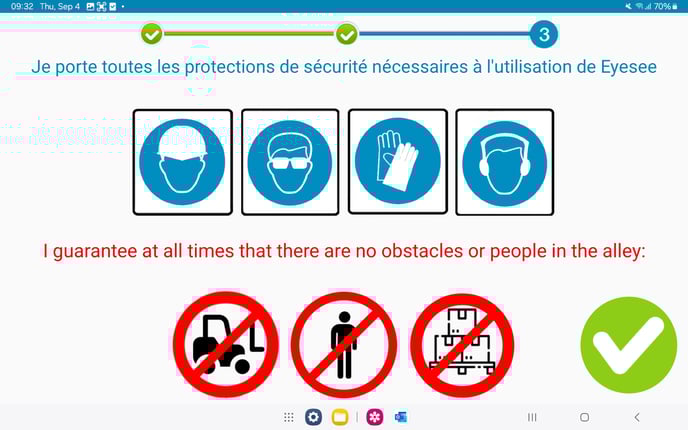

The third step of starting a mission is used to confirm that the operator is wearing the required safety equipment and that the environment is suitable for the flight.
This step can be customised according to site requirements (see in the Settings menu, then User setting).
Click the green button to confirm the use of safety equipment and proceed to the take-off stage.

---



Take-Off



Press and hold the green button for more than 3 seconds to launch the drone.
A beep from the drone will confirm that the take-off command has been received.

For safety reasons, if the button is pressed for less than 3 seconds, the drone will not take off and the message "Long press" will appear on the screen.



Press this button during the flight if needed to make the drone land.
