The Tools menu of the application allows you to test a RegEx in an office before flying the drone.
You will need a code matching the format to be tested in order to verify the RegEx.
-
Turn on the drone, the Wi-Fi router, and the tablet (as if starting a flight). The drone icon at the top of the screen must not be crossed out.
-

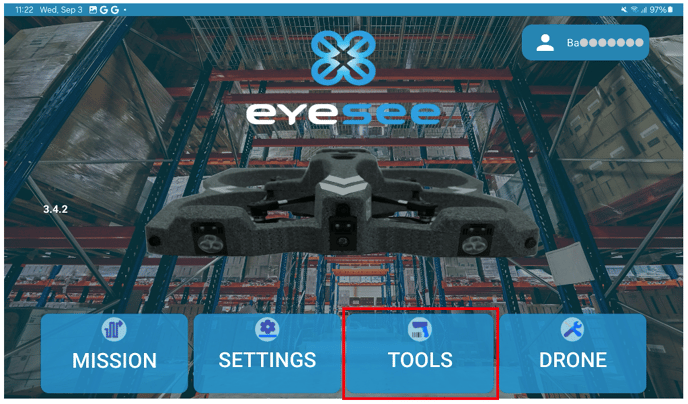

Once the red scanners are on, click on the Tools menu.
3. For an initial test, write a simple RegEx such as .*

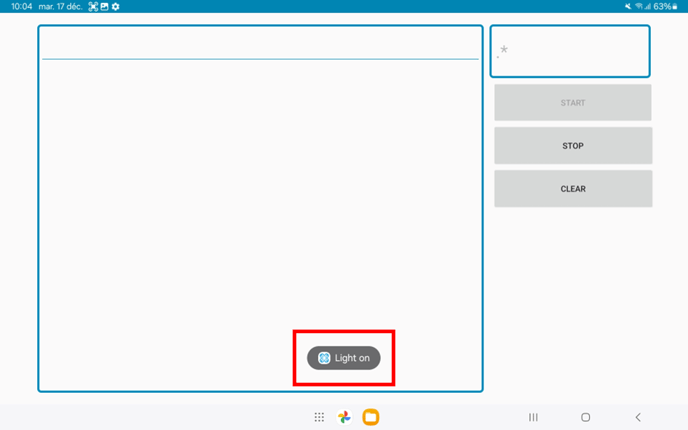

4. Click on the Start button. "Light on" indicates that the drone’s lights are on.

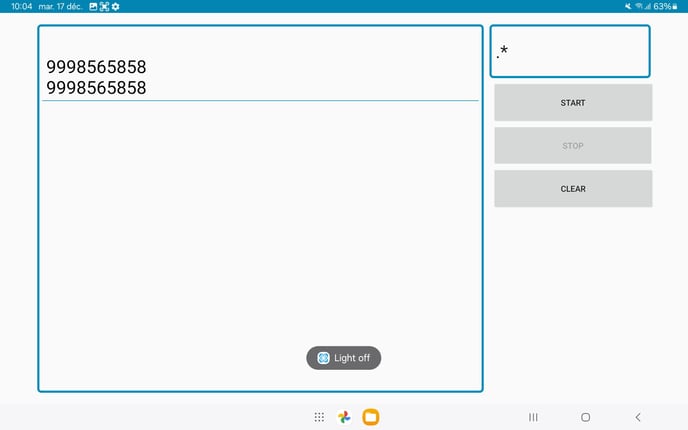

5. Hold the code to be scanned in front of the drone. If the drone is able to read it, the code will be displayed on the screen:
6. Click on Stop, replace .* with the RegEx you want to test. Click on Start again and hold the code in front of the drone.
If the drone reads the code, your RegEx is correct.
For more details on RegEx, refer to the RegEx Guide

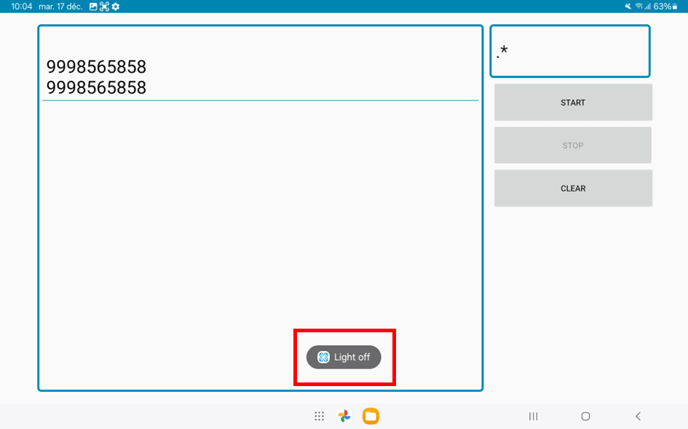

7. Once your test is complete, click on the Stop button to turn off the drone’s lights: the indication "Light off" should appear, then exit this screen.
8. Turn off the drone and the Wi-Fi router, as well as the tablet if you no longer need it.
